3 IN 1 Green Laser System Compliant with AN/PEQ 15 (ATPIAL)
BEAMSHOT® LAS31-G
3 in 1 Multi-function Laser Aiming System Compliant with AN/PEQ 15 (ATPIAL)

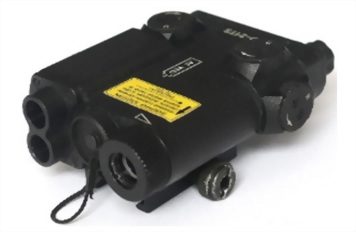

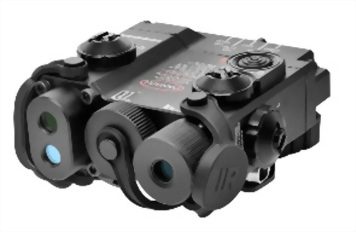

Beamshot LAS31 is a 3 in 1 Laser Aiming System that integrates co-aligned visible and IR laser pointers with a focusable IR laser illuminator. It is a product compliant with AN/PEQ 15 (ATPIAL) specifications. All components are encased within a light weight aerospace aluminum housing designed to attach to small equipped with a 1913 Picatinny rail. This product stands out as the world's smallest AN/PEQ 15(ATPIAL) -compliant product, featuring a fast-release mounting system.
Features:

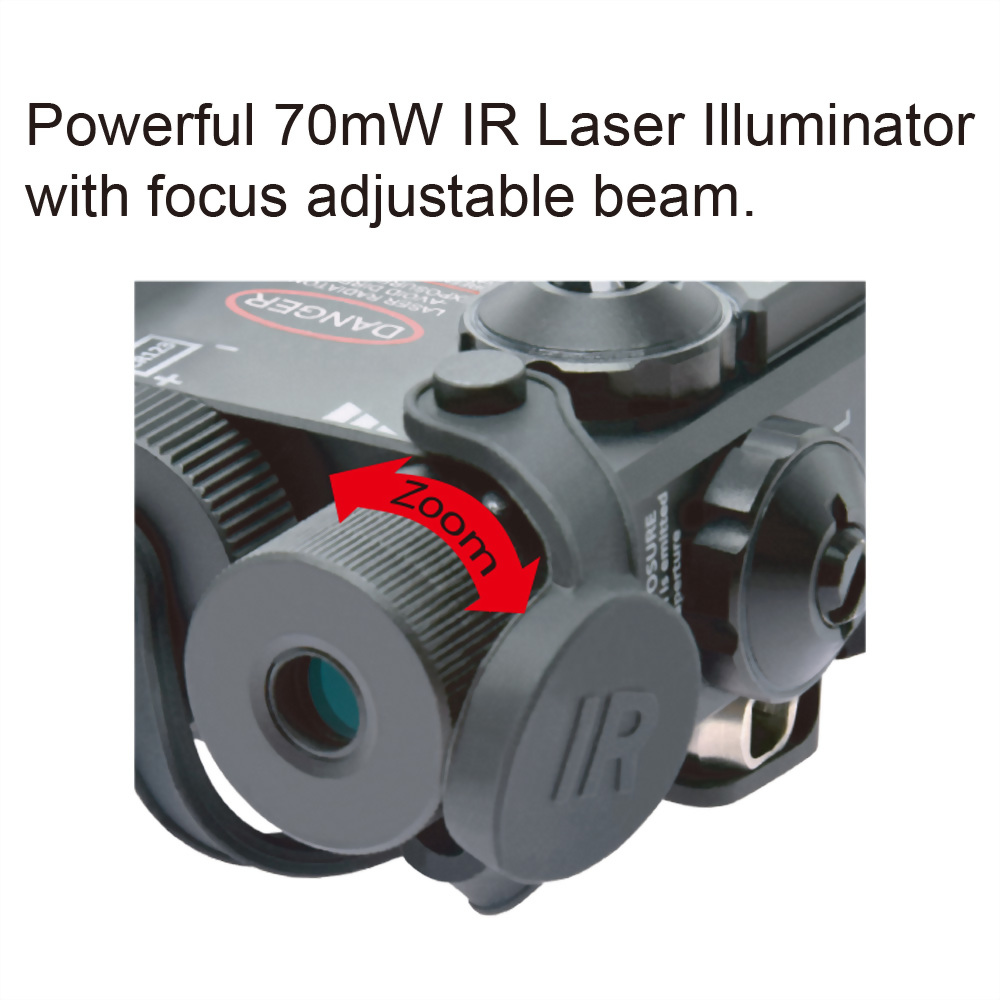

1. Powerful 70 mW IR Laser Illuminator with focus adjustable beam.

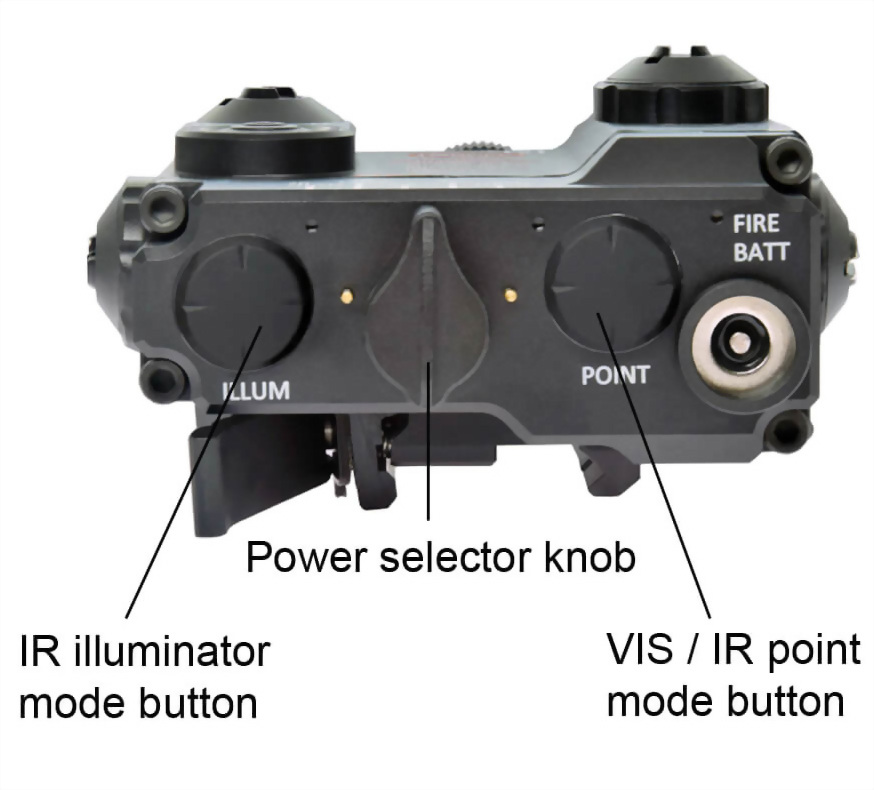

2. Lower power training mode for maximum safety or high power operational mode when in action.

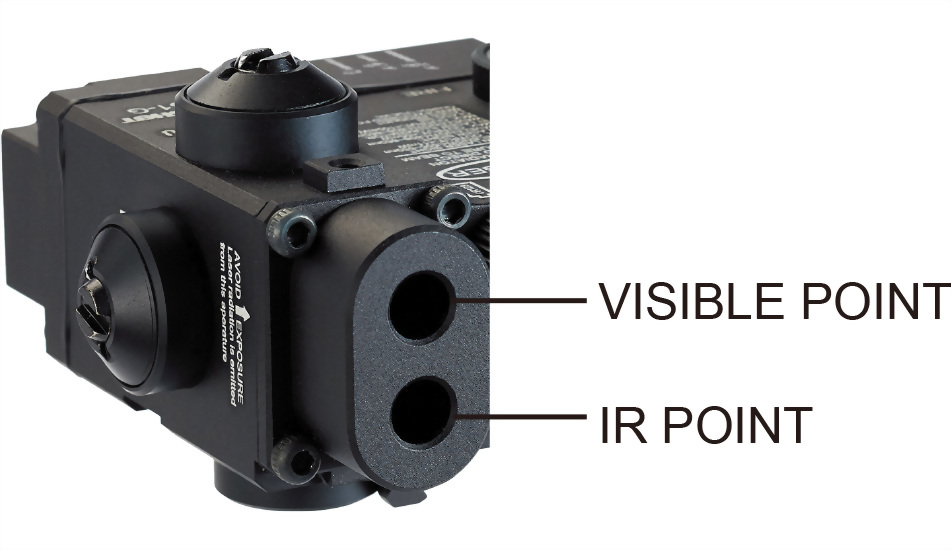

3. Co-aligned visible and IR laser pointer enables single windage/elevation adjustment.
4. Magnetic connected remote switch to avoid damage by high impact force.
5. Included two types of pressure pad switches that can be conveniently placed for versatile usage by the operator.
LAS31 demonstration video:
Reviews and article from our customer:
In my very limited tests, the LAS31 has performed every bit as well as an actual service ATPIAL LAM as far as the lasers are involved (with the obvious difference of green vs red visible pointers), and myself and the operators that helped me agree that handling, beam selection and ease of use is an improvement over the “venerable” peq-15 unit.
To wrap up, the Beamshot LAS31-G tested is a very capable, peq-15 compliant LAM.
|
|
|
|
|
|
|
|
|
Specifications |
Beamshot |
Beamshot |
L3/Insight Technology |
Laser Devices |
LEMT |
|
|
Mode Name |
LAS31-G |
LAS31-R |
AN/PEQ 15 |
DBAL-A2 |
LAD-21T |
|
|
Power Sources |
CR123A x1 |
CR123A x1 |
CR123A x1 |
CR123A x2 |
CR123A x1 |
|
|
Available color |
BLACK |
BLACK |
BLACK/Desert Sand |
BLACK |
BLACK |
|
|
Dimension (L*W*H) |
85 x 75.2 x 44 mm / 3.34 x 2.96 x 1.73 inch |
85 x 75.2 x 44 mm / 3.34 x 2.96 x 1.73 inch |
116.9 x 71.1 x 40.7 mm / 4.6 x 2.8 x 1.6 inch |
88.9 x 69.4 x 40.4 mm / 3.5 x 2.75 x 1.59 inch |
105 x 75 x 55 mm / 4.13 x 2.95 x 2.16 inch |
|
|
Weight |
215±10 g / 7.4 oz. |
215±10 g / 7.4 oz. |
212.6 g / 7.5 oz. |
227 g / 8 oz. |
350 g / 12.35 oz. |
|
|
Construction |
Aircraft Aluminum |
Aircraft Aluminum |
Polymer |
Aircraft Aluminum |
High endurance metal housing |
|
|
Battery Life |
>5 hrs (High) |
>10 hrs (High) |
>6 hrs (Dual High) |
3 hours |
|
|
|
Visible Point |
Wavelength |
505~530 nm (Green) |
620~660 nm (Red) |
620~650nm (Red) |
532nm |
635 +/- 10 nm (Red) |
|
Laser Output Power |
4.0±1mW (Low), 15±5mW (High) |
4.0±1mW (Low), 15±5mW (High) |
5.0mW(max) |
<5mW |
>4.5mW |
|
|
Beam Divergence |
<0.5 mRad |
<0.5 mRad |
0.5 mRad |
<0.8 mRad |
0.6 mrad(1') |
|
|
IR Point |
Wavelength |
820~860nm |
820~860nm |
820~850nm |
835nm |
830 +/- 20nm |
|
Laser Output Power |
<0.7 mW (Low), 45±5 mW (High) |
<0.7 mW (Low), 45±5 mW (High) |
0.7 mW (Low), 27.5 mW (High) |
<5mW |
<1mW(Low), >20mW(High) |
|
|
Beam Divergence |
<0.5 mRad |
<0.5 mRad |
0.5 mRad |
<0.8 mRad |
0.6 mrad(1') |
|
|
IR Illuminator |
IR Illuminiator Wavelength |
820~860nm |
820~860nm |
820~850nm |
835nm |
830 +/- 20nm |
|
IR Illuminiator Output power |
4±0.95mW (Low), 70±20 mW (High) |
4±0.95mW (Low), 70±20 mW (High) |
3.5 mW (Low), 45 mW (High) |
<50mW |
<2mW(Low), >25mW(High) |
|
|
IR Illuminiator Beam Divergence |
2 to 100 mRad (0.11∘to 5.7∘) |
2 to 100 mRad (0.11∘to 5.7∘) |
1 mrad to >105 mRad |
95 to 195 mRad |
2.8 to 105mRad(10' to 6o) |
|
|
Windage / Elevation Adjustment |
Yes |
Yes |
Yes |
Yes |
Yes, +/-20mRad(+/-1o10') |
|
|
Laser Sight Function |
OFF/Constant on/Strobe/All function can be worked for 5 mins |
OFF/Constant on/Strobe/All function can be worked for 5 mins |
Hight/Low power modes/Mometary/ constant on for 5 mins |
Hight/Low power modes/Mometary/ constant on for 5 mins |
|
|
|
Indicator |
IR Illuminator/VIS&IR point/ Fire indicator |
IR Illuminator/VIS&IR point/ Fire indicator |
Activation/Low battery |
Activation/Low battery |
|
|
|
Operating Temperature |
-40 ̊~65 ̊ C |
-40 ̊~65 ̊ C |
-20 ̊~65 ̊ C |
0 ̊~65 ̊ C |
-40 ̊~60 ̊ C |
|
|
Water Resistant |
10M |
10M |
6M for 1 hour |
5M |
|
|
|
Remote Cable Switch |
2 type |
2 type |
1 type |
|
|
|
- Dimensions:
3.34”(L) x 2.96”(W) x 1.73”(H) / 85(L) x 75.2(W) x 44(H) mm
- Weight:
7.6 oz. / 215±10 g -including batt.
- Construction:
Aerospace - grade Aluminum
- Wavelength:
Visible Laser Sight: 510~530 nm
IR Laser Sight: 820~860 nm
IR Laser Illuminator: 820~860 nm
- Power Output:
Visible Laser Sight: 4±1mW (Low) / 15±5mW (High)
IR Laser Sight: Less than 0.7mW (Low)(Class I) / 45±5mW (High)
IR Laser Illuminator: 4±1mW (Low) / 70±20mW (High)
- Operation:
-40°F to 149°F (-40°C to 65°C)
- Sight Range (night time/day time):
Visible Laser Sight: High(5000m/50m), Low(2000m/20m)
IR Laser Sight: High(5000m), Low(600m)
IR Laser Illuminator: High(5000m), Low(600m)
- Battery:
1 x CR123A battery
- Mount:
Mil-STD-1913 - Using the integrated rail mounting system
