3 in 1 Red Laser Light Combo

The LAS31 is a 3 in 1 Laser Aiming System that integrates co-aligned visible and IR laser pointers with a focusable IR laser illuminator.
Model : LAS31-R

BEAMSHOT® LAS31-R

3 in 1 Multi-function Laser Aiming System



The LAS31 is a 3 in 1 Laser Aiming System that integrates co-aligned visible and IR laser pointers with a focusable IR laser illuminator. All elements are encased in a light weight aerospace aluminum housing that fits onto all small arms equipped with a 1913 picatinny rail.





Features:

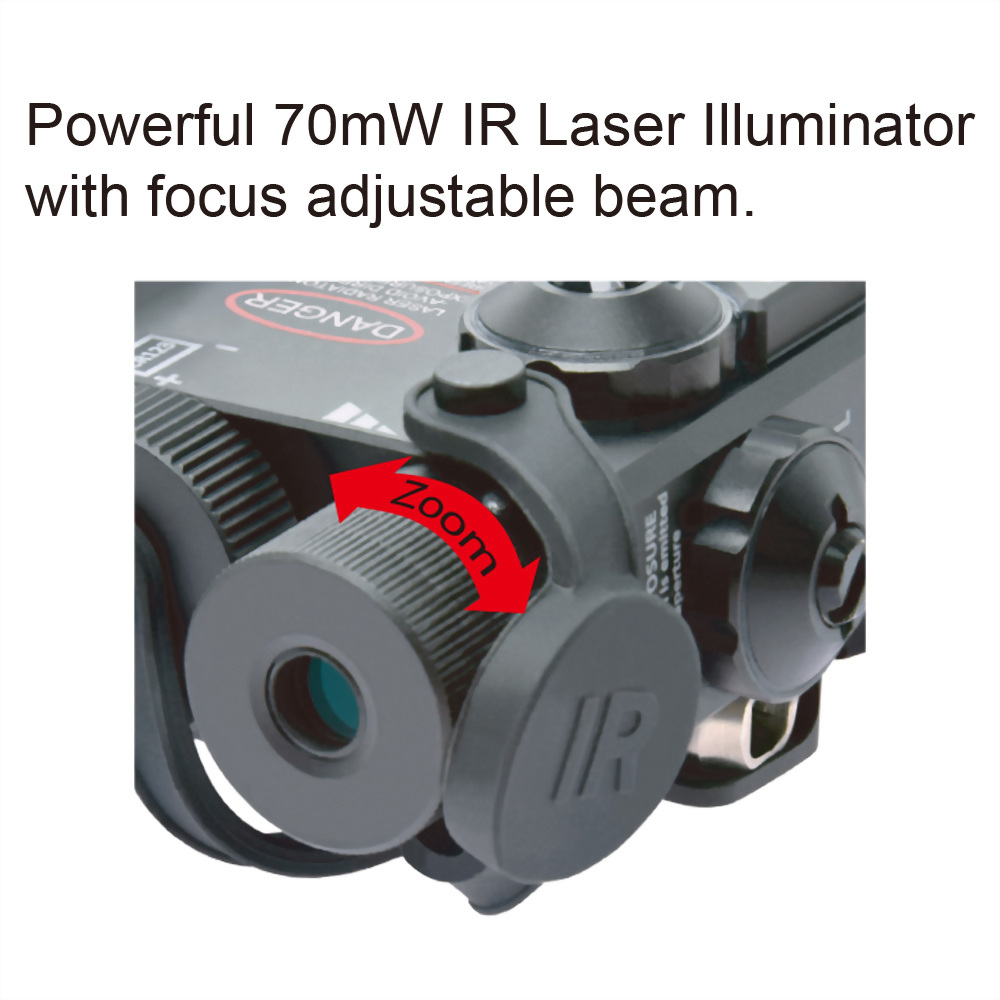

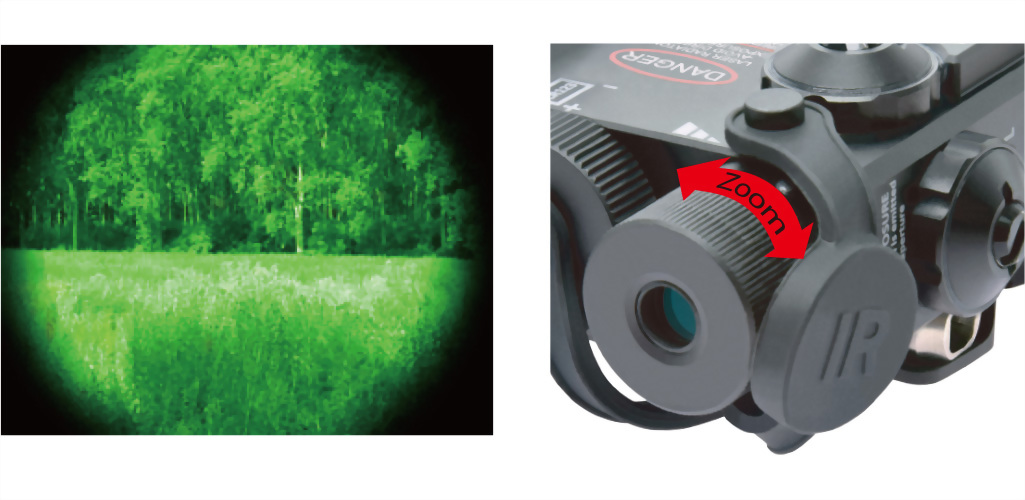

1. Powerful 70 mW IR Laser Illuminator with focus adjustable beam.

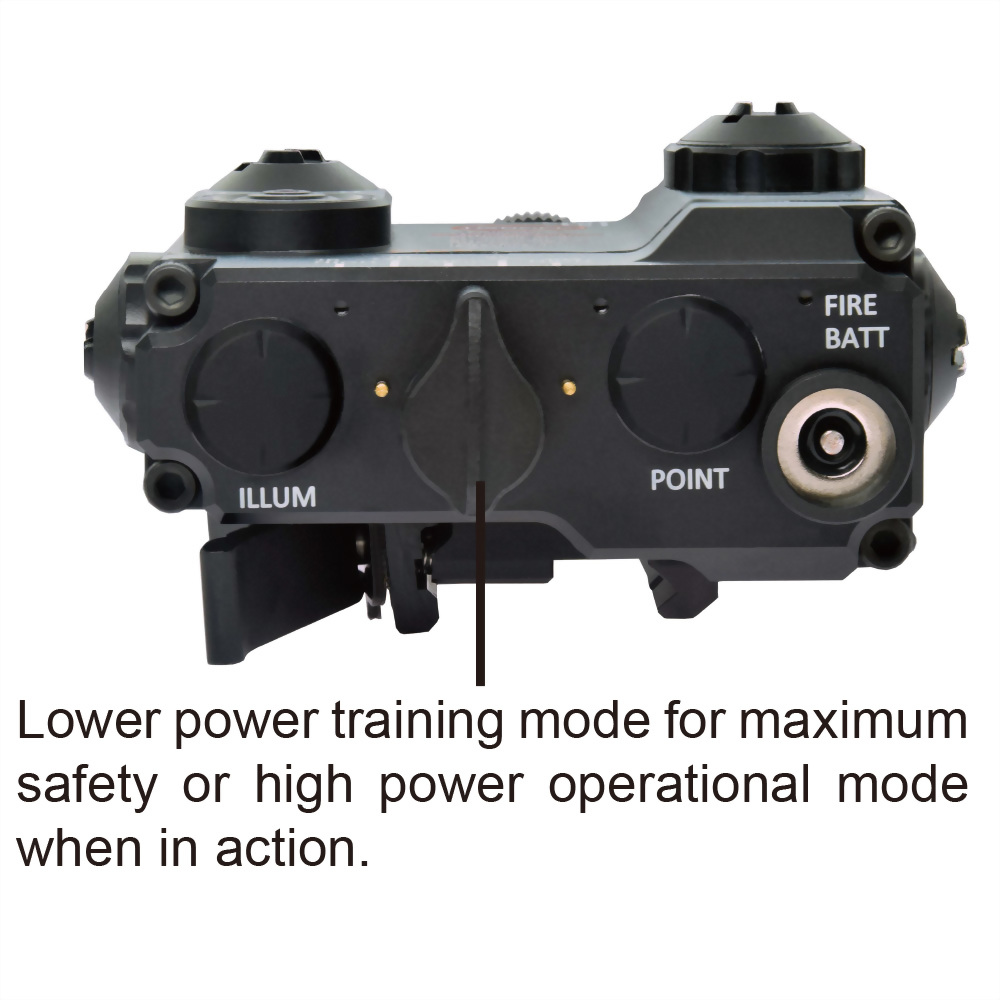

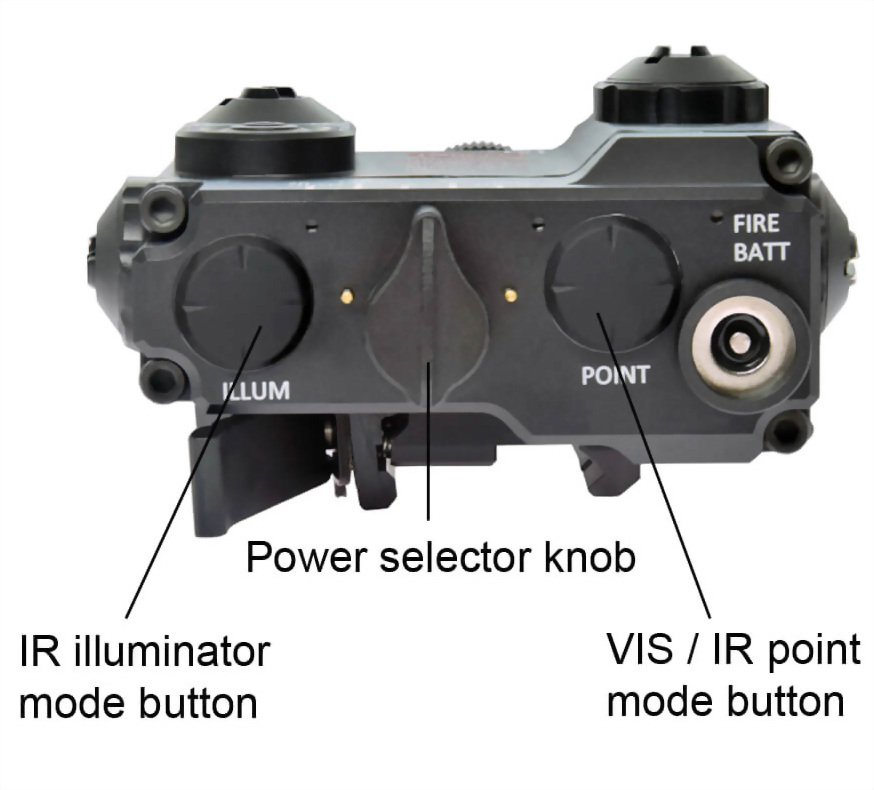

2. Lower power training mode for maximum safety or high power operational mode when in action.

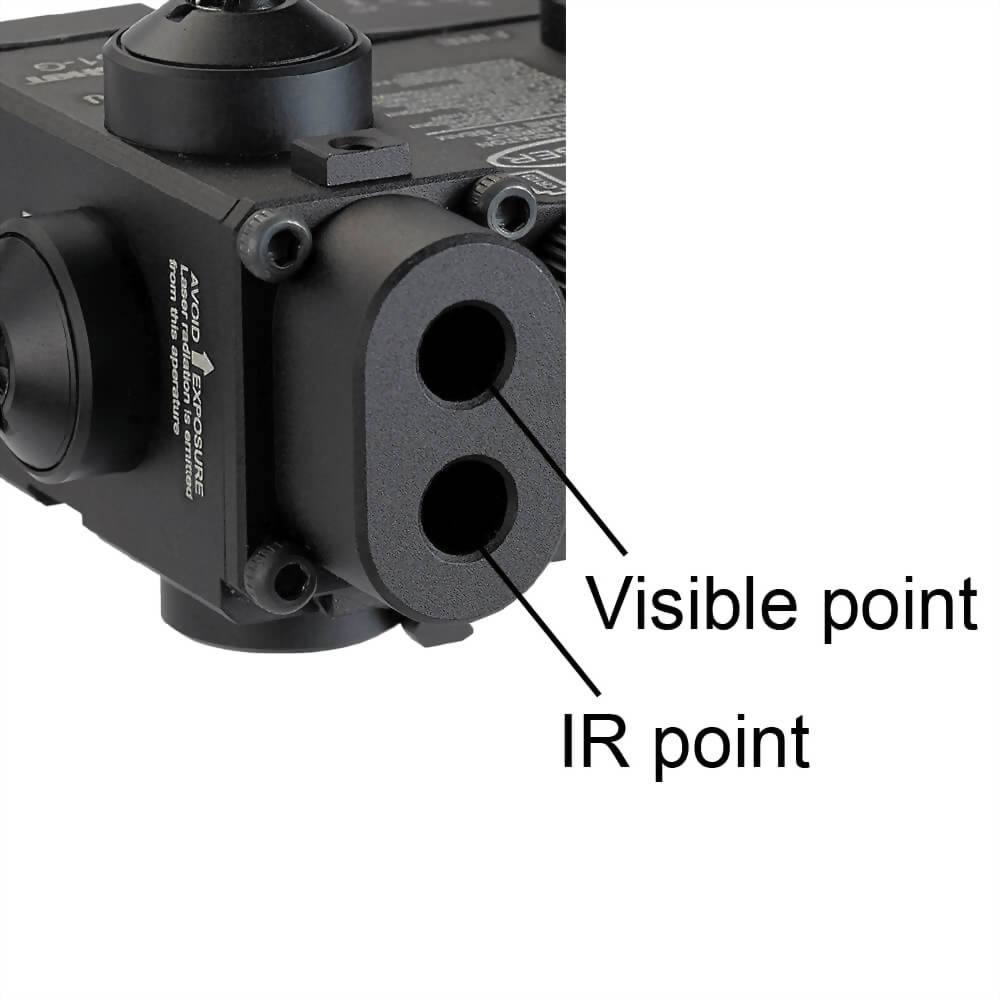

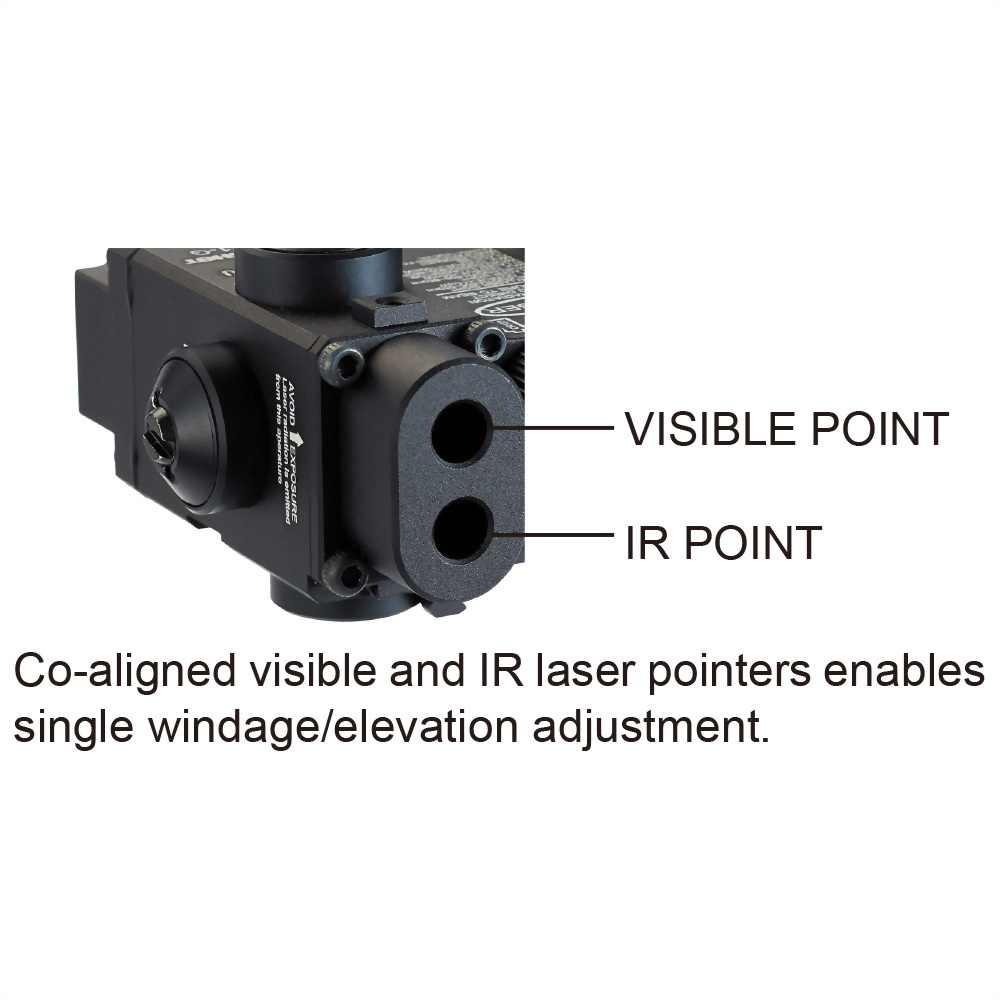

3. Co-aligned visible and IR laser pointer enables single windage/elevation adjustment.

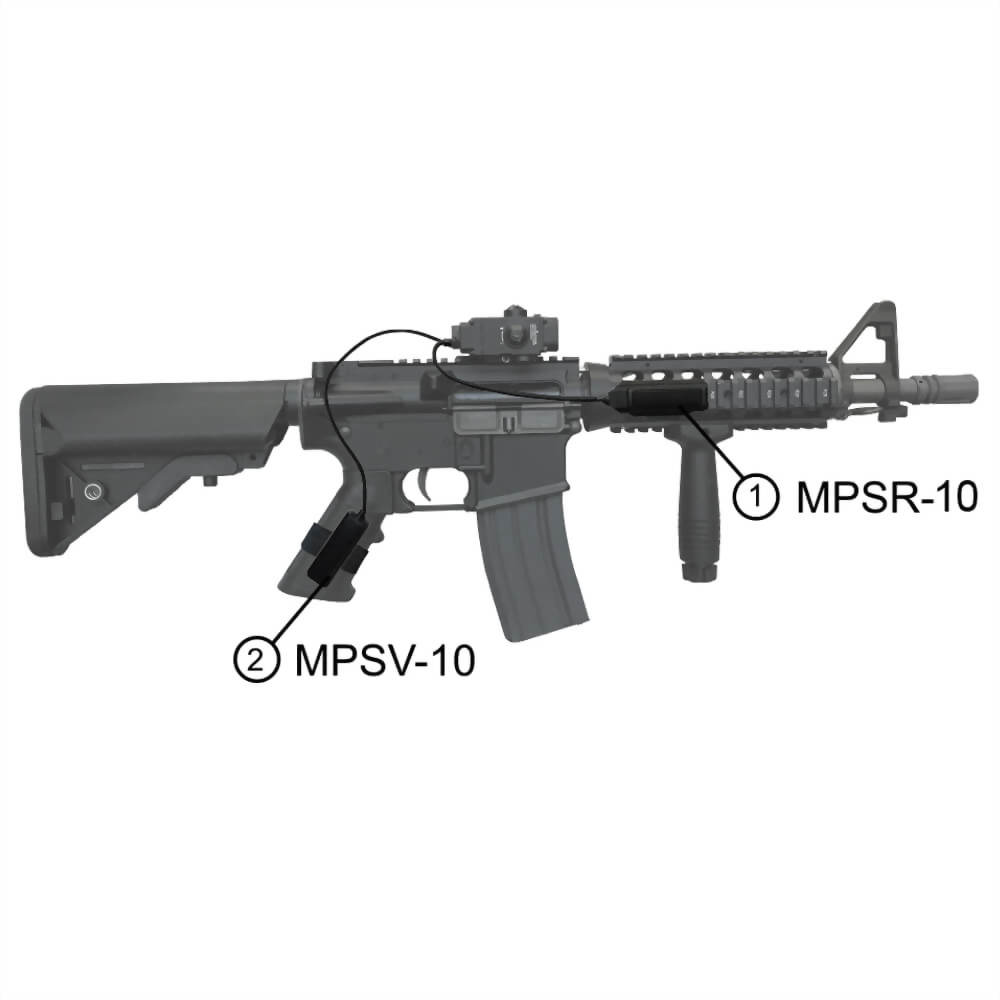

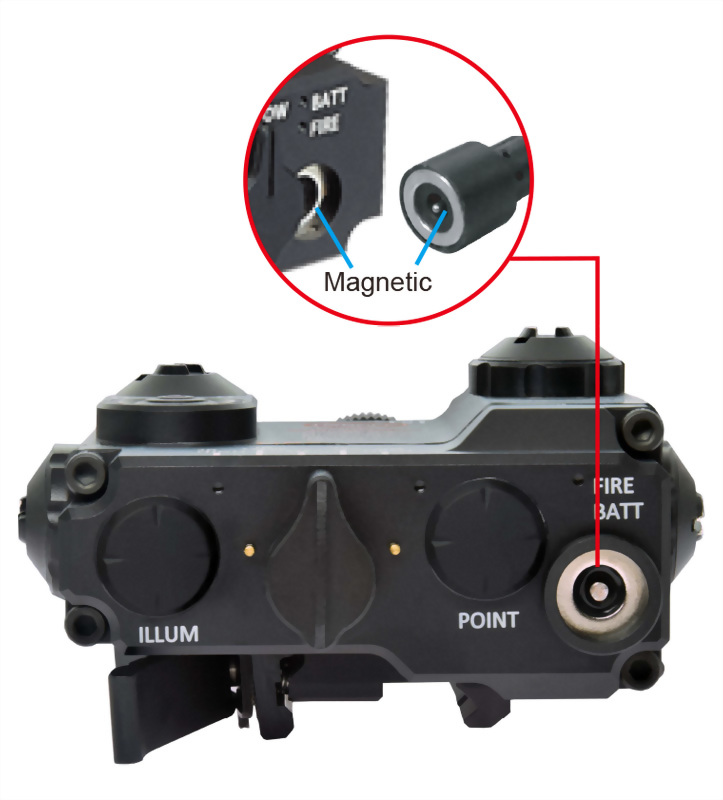

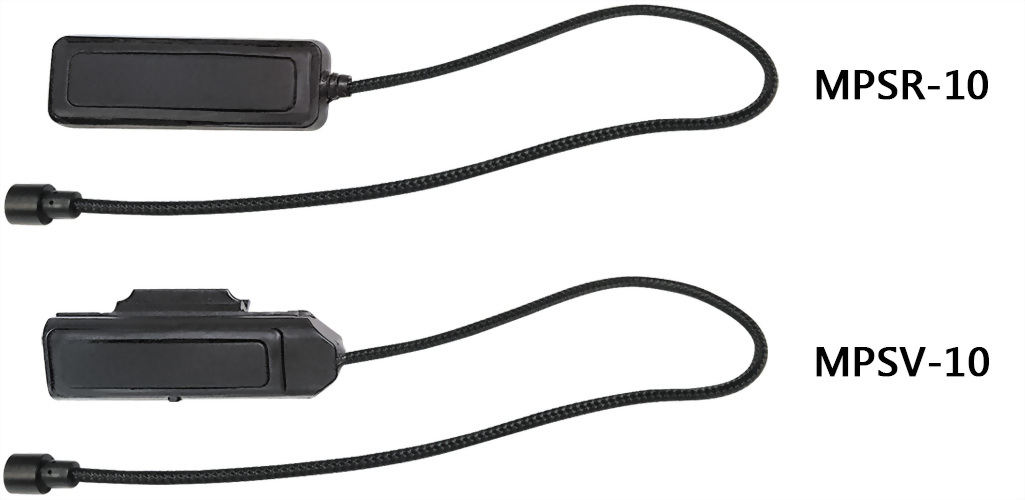

4. Magnetic connected remote switch to avoid damage by high impact force.


  • Dimensions:

3.34”(L) x 2.96”(W) x 1.73”(H) / 85(L) x 75.2(W) x 44(H) mm


  • Weight:

7.6 oz. / 215±10 g       -including batt.


  • Construction:

Aerospace - grade Aluminum


  • Wavelength:

Visible Laser Sight: 620~680 nm

IR Laser Sight: 820~860 nm

IR Laser Illuminator: 820~860 nm


  • Power Output:

Visible Laser Sight: 4±1mW (Low) / 15±5mW (High)

IR Laser Sight: Less than 0.7mW (Low)(Class I) / 45±5mW (High)

IR Laser Illuminator: 4±1mW (Low) / 70±20mW (High)


  • Operation :

-40°F to 149°F (-40°C to 65°C)


  • Sight Range (night time/day time):

Visible Laser Sight: High(2000m/30m), Low(500m/10m)

IR Laser Sight: High(5000m), Low(600m)

IR Laser Illuminator: High(5000m), Low(600m)


  • Battery:

1 x CR123A battery


  • Mount:

Mil-STD-1913 - Using the integrated rail mounting system
