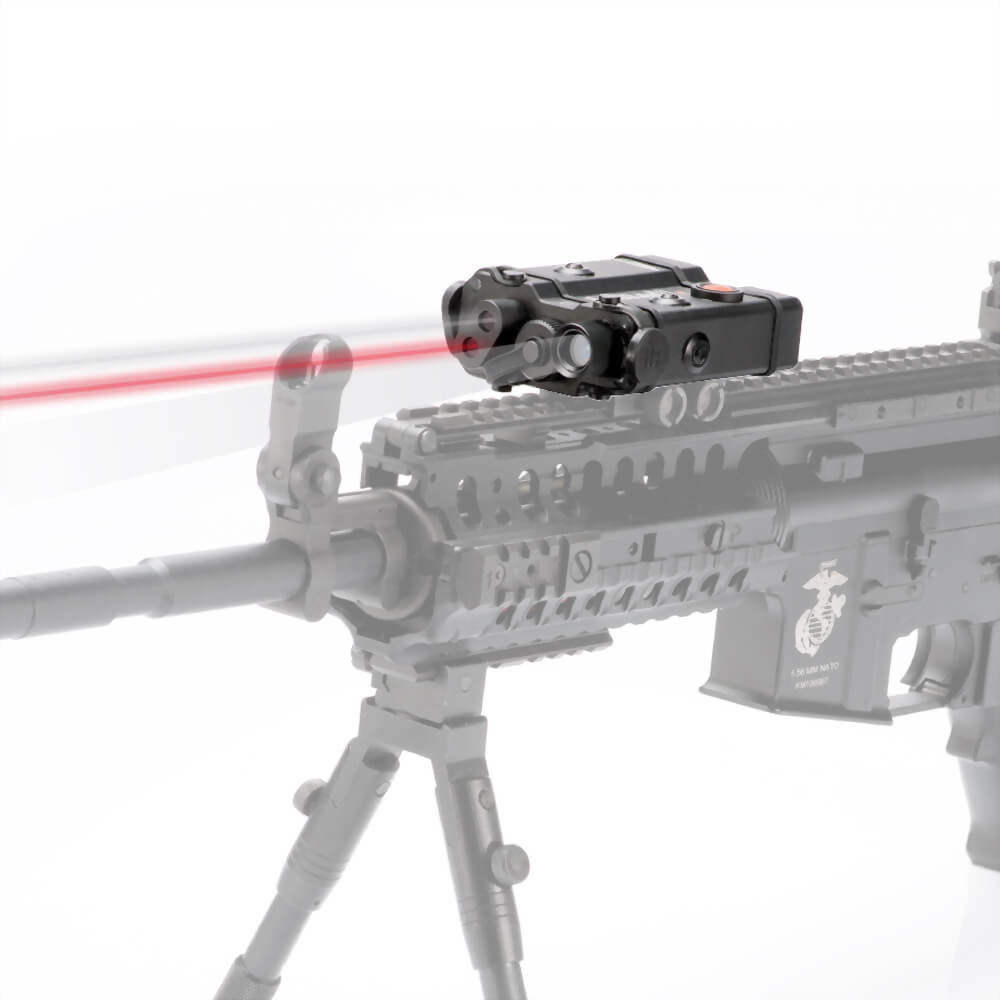

BEAMSHOT^® Trizm-R

Three-In-One Laser System

The TRIZM IR laser and IR illuminator can be used covertly with night vision equipment. The visible laser (available in Green or Red) is excellent for sighting in on and designating targets when actively engaging. Visible and Infrared aiming point lasers share the same tool-free windage and elevation adjustments while offering precise pin-point weapon aiming and target acquisition. The Infrared illuminator with an adjustable spot size, offers custom target area illumination under any light condition. The IR illuminator also works with tool-free windage and elevation adjustment to precisely co-align with the laser dot.

Features:

1. Dual Selection Switches provide maximum operational versatility. Easily access multiple functions; Low/High laser power, constant/strobe laser light, Visible Pointer only, IR Pointer only, IR Illuminator only and IR Point & IR Illuminator combined

2. Remote cable pressure pad switch and integrated momentary activation switch

3. Low /High power LED indicator for an added safety measure

4. Single windage/elevation adjustment for both visible and IR laser pointer. Two aiming lasers are co-center adjusted and will always keep on the same sight adjustment up to 1000 yards.

• Dimensions:

4.51”(L) x 3.13”(W) x 1.74”(H) / 114.6(L) x 79.7(W) x 44.2(H) mm

• Weight:

11.1±0.35 oz. / 315±10 g        -including batt

• Construction:

Aerospace - grade Aluminum

• Wavelength:

Visible Laser Sight: 635 nm

IR Laser Sight: 830 nm

IR Laser Illuminator:  830 nm

• Power Output:

Visible Laser Sight: 4±1mW (Low) / 10±2mW (High)

IR Laser Sight: 0.6±0.095mW (Low)(Class I) / 50±5mW (High)

IR Laser Illuminator: 4±0.95mW (Low) / 80±20mW (High)

• Operation :

-40°F to 149°F (-40°C to 65°C)

• Sight Range (night time/day time):

Visible Laser Sight: High(2000m/30m), Low(500m/10m)

IR Laser Sight: High(3000m), Low(500m)

IR Laser Illuminator: High(5000m), Low(1000m)

• Battery:

1 x CR123A battery or AA battery

• Mount:

Mil-STD-1913 - Using the integrated rail mounting system
